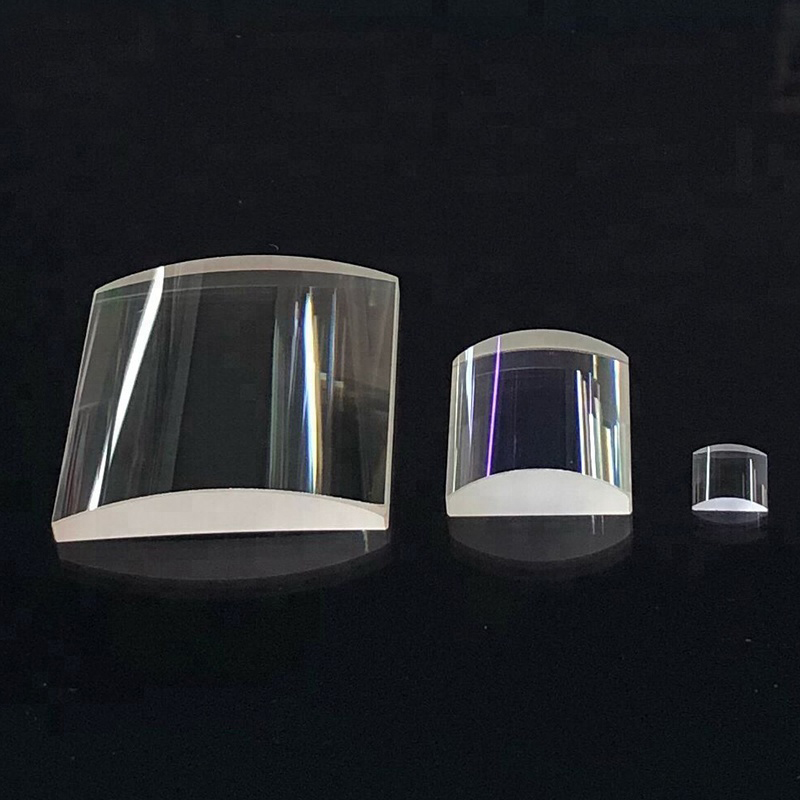

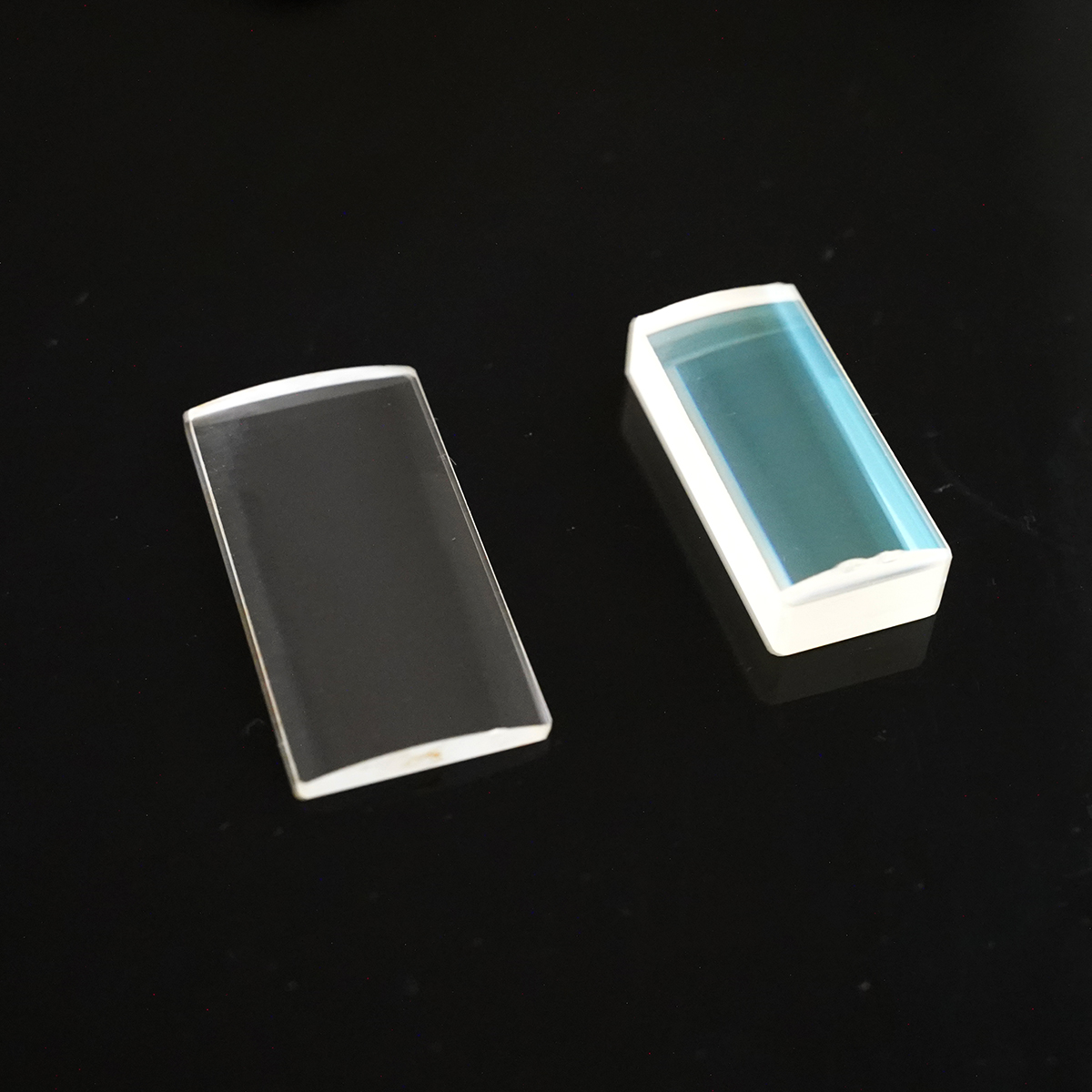

Customized Plano Convex Lens Achromatic Cylindrical Lenses For Optical Elements

Name: Customized Plano Convex Lens Achromatic Cylindrical Lenses For Optical Elements
Brand: Advance
Price: 100.00 USD

Quality Customized Plano Convex Lens Achromatic Cylindrical Lenses For Optical Elements for sale

Place of Origin : Shanghai, China

Brand Name : Advance

Model Number : Advance

Packaging Details : Vacuum+EVA+Carton

Supply Ability : 100000 Piece/Pieces per Week

MOQ : 10 Pieces

Price : $100.00/Pieces 10-99 Pieces

Materials : BK7 Quartz Infrared Sapphire etc.

Customized support : OEM, ODM

Diameter : Custom's Requirements

Application : Optical Elements

Coating : AR-coated

Color : Transparent

Size : Customized Size

Focal length : Custom Request

Contact Now

Customized Plano Convex Lens Achromatic Cylindrical Lenses For Optical Elements

The integration of a Customized Plano Convex Lens within an optical train allows for efficient light collection and collimation. When paired with Achromatic Cylindrical Lenses, these Optical Elements allow designers to correct astigmatism in laser diodes or generate perfectly uniform light sheets for advanced microscopy.

Every Customized Plano Convex Lens we produce undergoes rigorous double-sided polishing to minimize scatter. Similarly, our Achromatic Cylindrical Lenses are designed as cemented doublets to provide superior edge-to-edge sharpness.

Whether you are building a complex projection system or a precise diagnostic tool, selecting the right Customized Plano Convex Lens and high-performance Achromatic Cylindrical Lenses ensures your Optical Elements function with the highest possible fidelity.

Our Customized Plano Convex Lens service allows for bespoke focal lengths and diameters, ensuring a perfect fit for proprietary Optical Elements housings.

Customized Plano Convex Lens Achromatic Cylindrical Lenses For Optical Elements

Technical Specifications: Benchmarks for Professional Optical Elements

To assist engineers in system selection, the following table details the professional-grade parameters for our Customized Plano Convex Lens and Achromatic Cylindrical Lenses series.

Feature	Customized Plano Convex Lens	Achromatic Cylindrical Lenses
Material Substrate	K9 (BK7), Fused Silica, or Sapphire	N-BK7/SF5 Doublets (Cemented)
Function	Point Focusing / Collimation	Linear Focusing / Anamorphic Expansion
Surface Quality	40-20 to 20-10 Scratch-Dig	40-20 Scratch-Dig
Centration	< 3 arc minutes	< 5 arc minutes
Achromatic Correction	N/A (Monochromatic focus)	Optimized for 400nm - 700nm
Coating Options	BBAR, V-Coat, or Uncoated	Multi-layer AR Optical Elements Coating
Size Range	Customized 3mm to 300mm	Customized 5mm to 150mm
Surface Flatness	λ/4 @ 633nm	λ/2 @ 633nm per cm

Detailed Specifications

Parameter	Specification Range
Range of diameter	Dia.0.7mm-Dia.400mm
Range of curve radius	R1.5-R∞ etc
Tolerance of diameter	+/-0.1, +/-0.01, +/-0.005 etc.
Surface of diameter	λ, 1/2λ, 1/4λ, 1/10λ etc
Tolerance of Thickness	+/-0.1, +/-0.05, +/-0.01 etc
Centration	+/-2', +/-1' etc
Aperture N	5, 1 etc
Irregularity ΔN	2, 1, 0.5, 0.2 etc
Surface quality	60/40, 40/20, 20/10, 10/5 etc

Application Areas

Life Science Imaging: Using Achromatic Cylindrical Lenses to create thin light sheets for selective plane illumination microscopy (SPIM).
Laser Marking & Engraving: Deploying a Customized Plano Convex Lens to achieve the high energy density required for precise material processing.
Spectroscopy: Implementing Achromatic Cylindrical Lenses to focus spectral data onto linear detectors with high Optical Elements resolution.
Machine Vision: Utilizing a Customized Plano Convex Lens for uniform illumination in high-speed industrial inspection lines.

Expert Product FAQ: Maximizing Performance with Optical Elements

This section provides authoritative technical insights into the selection of the Customized Plano Convex Lens and Achromatic Cylindrical Lenses.

Q1: Why are Achromatic Cylindrical Lenses preferred over single-element cylindrical lenses?

Answer: Single-element lenses suffer from chromatic aberration, meaning different colors focus at different points. Achromatic Cylindrical Lenses are critical Optical Elements for multi-wavelength applications because they use a doublet design to bring red and blue light to the same focal line, maintaining a crisp optic output.

Q2: Can I order a Customized Plano Convex Lens with a specific focal length?

Answer: Yes. Our Customized Plano Convex Lens service allows you to specify exact focal lengths, diameters, and center thicknesses. This flexibility is vital when designing custom Optical Elements where standard catalog parts do not fit.

Q3: How do Achromatic Cylindrical Lenses handle high-power lasers?

Answer: For high-power Optical Elements, we utilize specialized adhesives or air-spaced designs for our Achromatic Cylindrical Lenses. Additionally, applying a high-LDT (Laser Damage Threshold) coating to your Customized Plano Convex Lens ensures long-term durability.

Q4: What is the benefit of AR coatings on these Optical Elements?

Answer: An Anti-Reflective (AR) coating on a Customized Plano Convex Lens or Achromatic Cylindrical Lenses reduces surface reflection from 4% down to less than 0.5%. This increases the overall efficiency and contrast of your Optical Elements system.

Q5: What materials are available for a Customized Plano Convex Lens?

Answer: We offer a wide range of substrates for our Optical Elements, including N-BK7 for visible light, UV Fused Silica for ultraviolet applications, and IR-grade materials for the Customized Plano Convex Lens used in thermal imaging.
